Aerophone Mini - Internals

Published on Apr 5, 2020 Gianluca Barbaro

I wanted to make some modifications to my Aerophone Mini (more on that soon), so I had to open it up. Here are some photos of its internals.

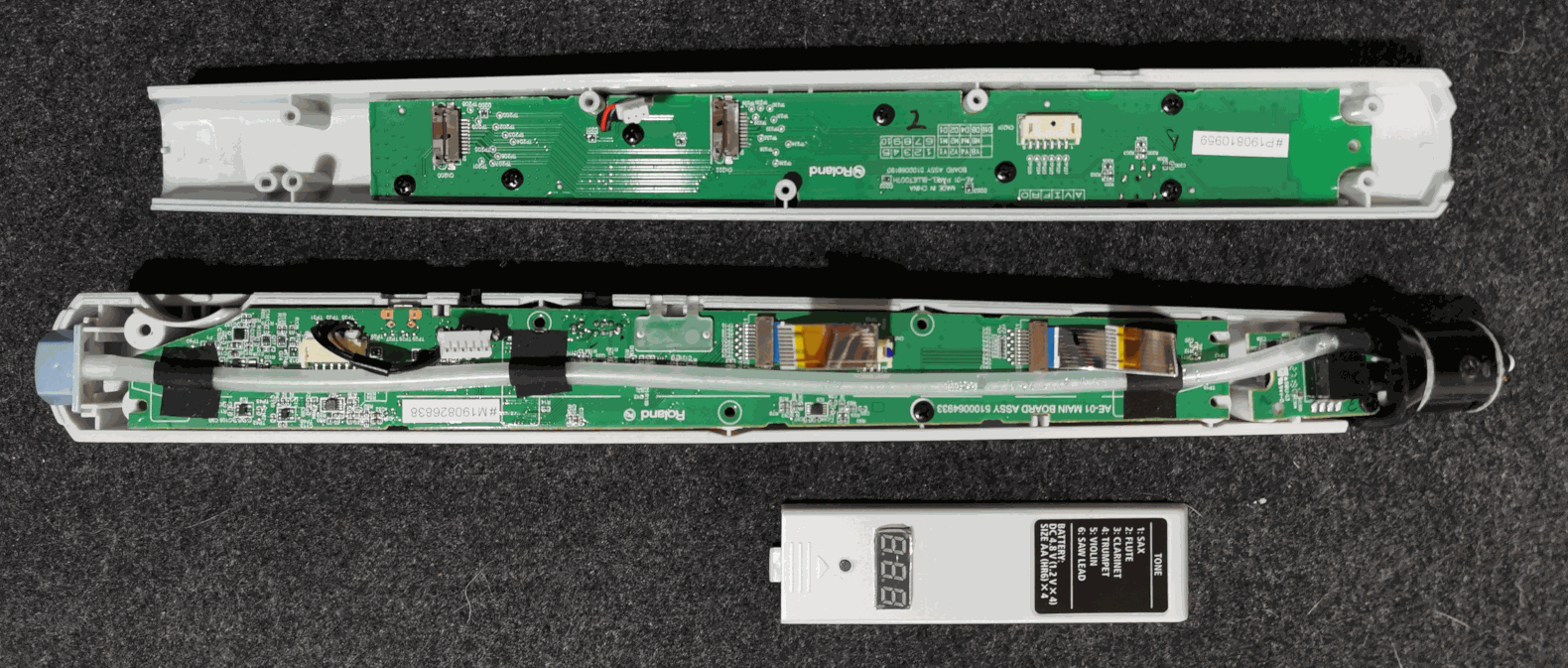

Roland Aerophone Mini AE-01 - Internals 1

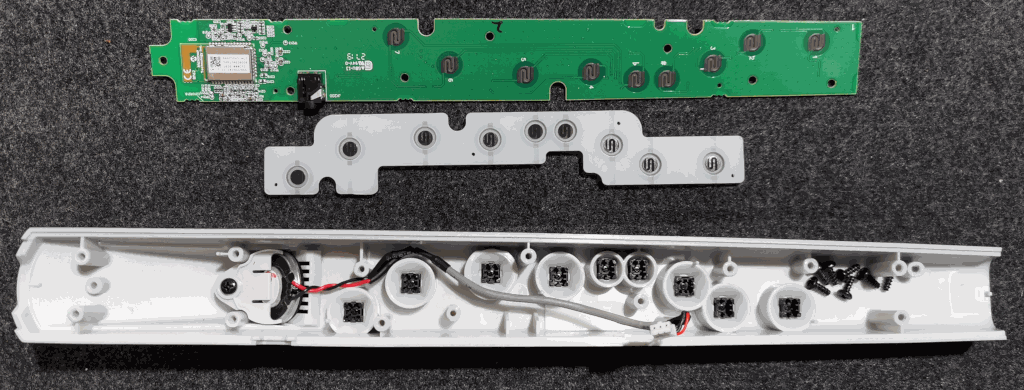

Roland Aerophone Mini AE-01 - Internals - top keypad and keys

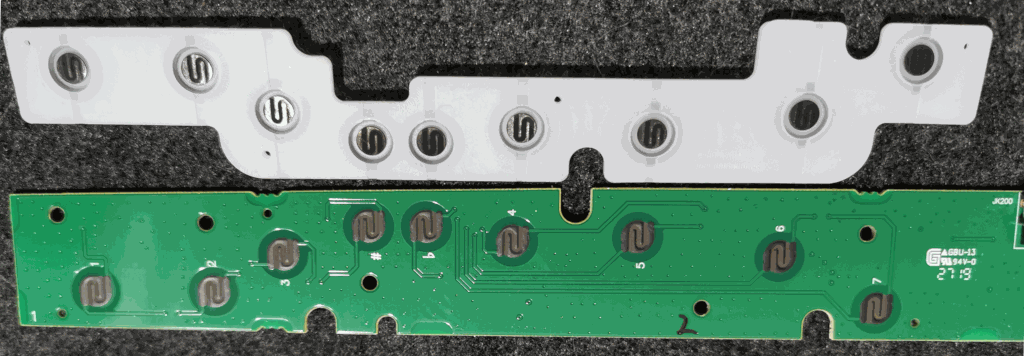

Roland Aerophone Mini AE-01 - Internals - top keypad

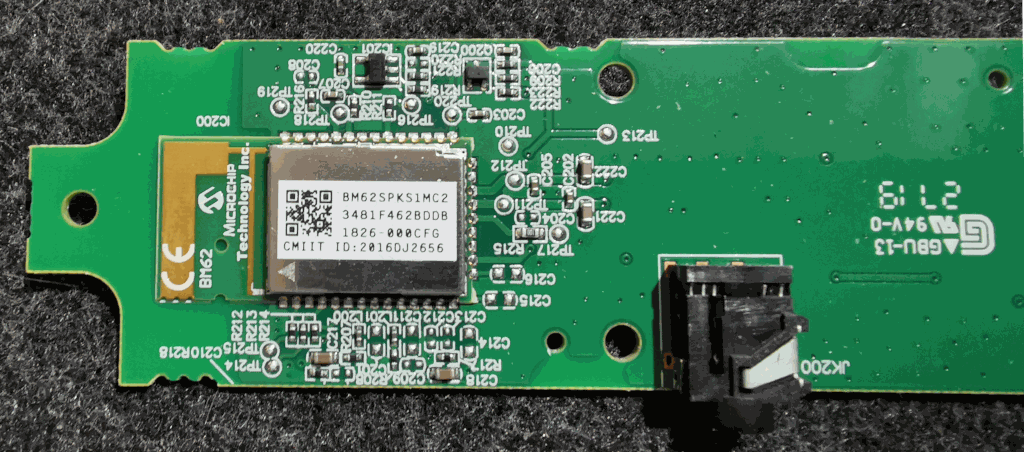

Roland Aerophone Mini AE-01 - Internals - Bluetooth Module

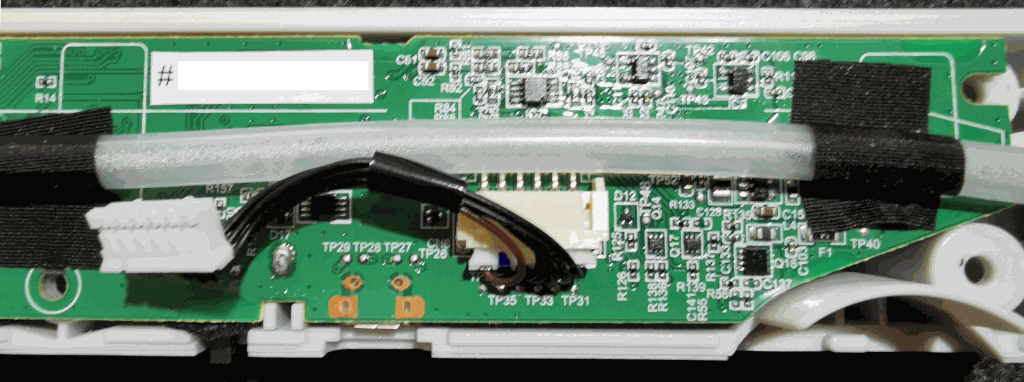

Roland Aerophone Mini AE-01 - Internals - Mainboard - Lower side 1

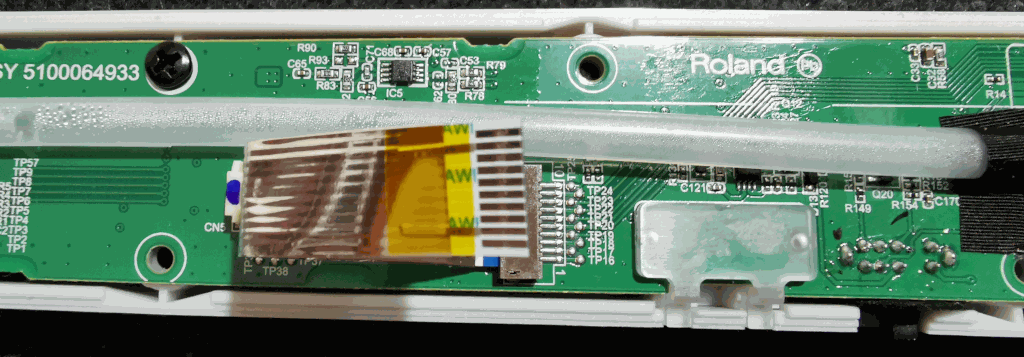

Roland Aerophone Mini AE-01 - Internals - Mainboard - Lower side 2

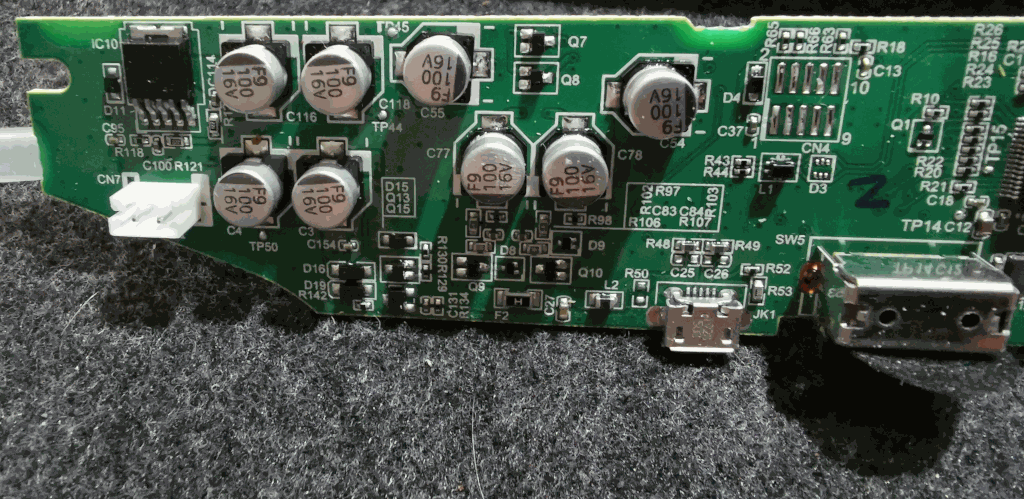

Roland Aerophone Mini AE-01 - Internals - Mainboard - Upper side 1

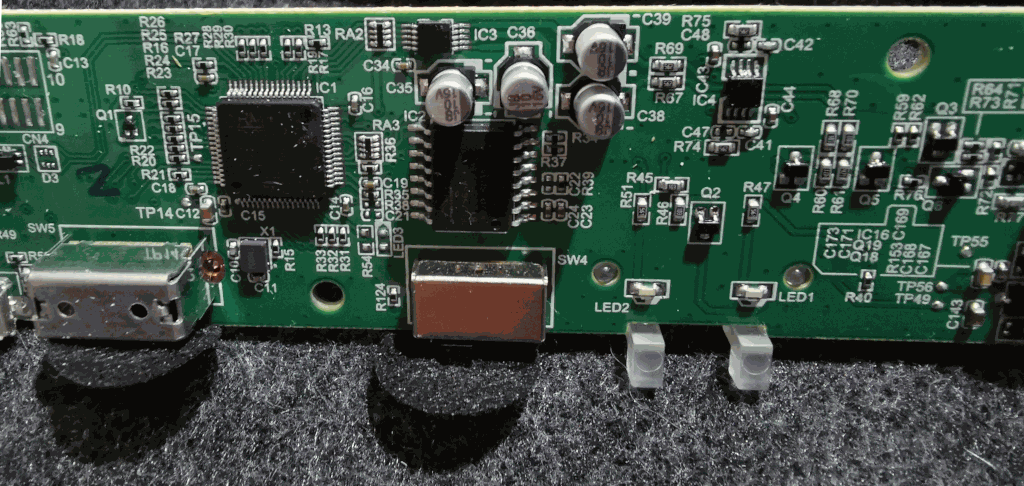

Roland Aerophone Mini AE-01 - Internals - Mainboard - Upper side 2

Immagine della diapositivaRoland Aerophone Mini AE-01 - Internals - Mainboard - Upper side 3

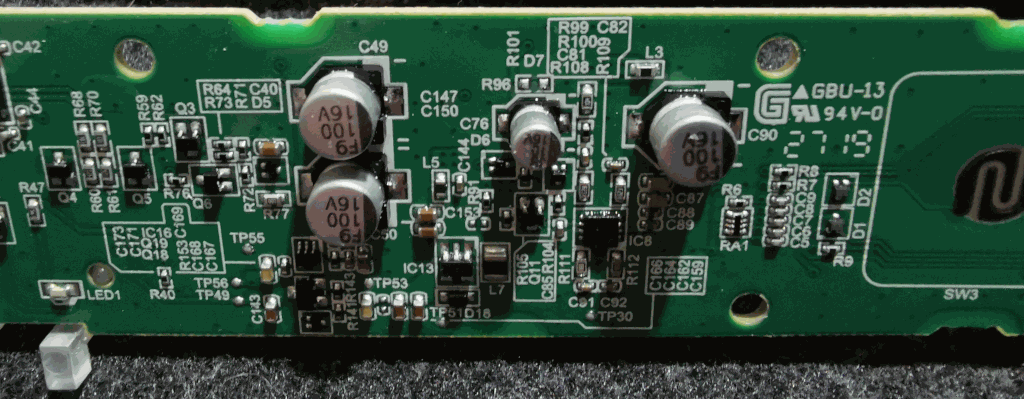

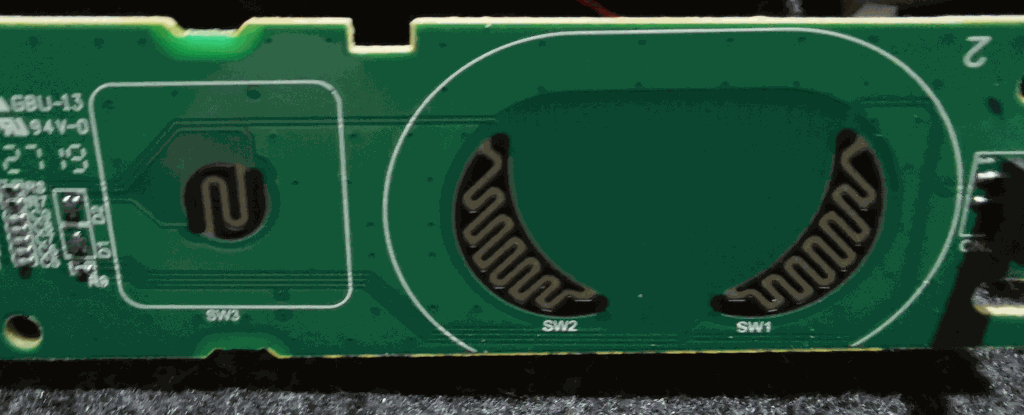

Immagine della diapositivaRoland Aerophone Mini AE-01 - Internals - Mainboard - Upper side 4

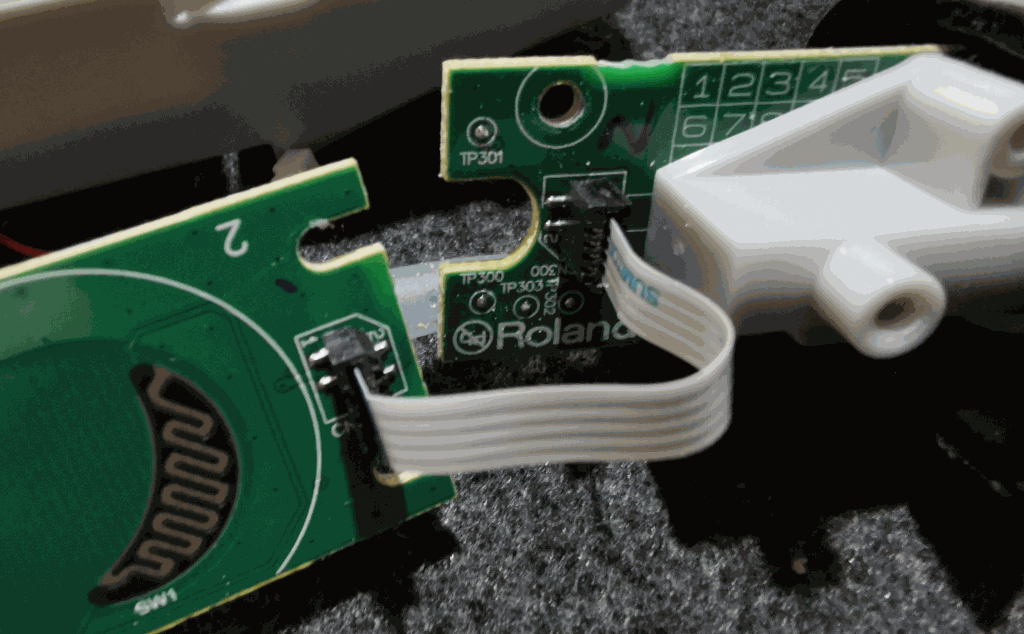

Immagine della diapositivaRoland Aerophone Mini AE-01 - Internals - Mainboard - Upper side 5 - Connection to mouthpiece

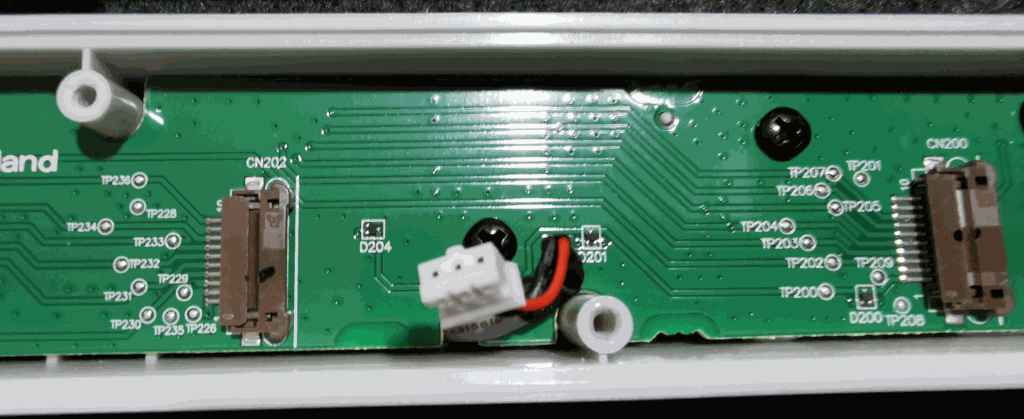

Roland Aerophone Mini AE-01 - Internals - Daughterboard 1

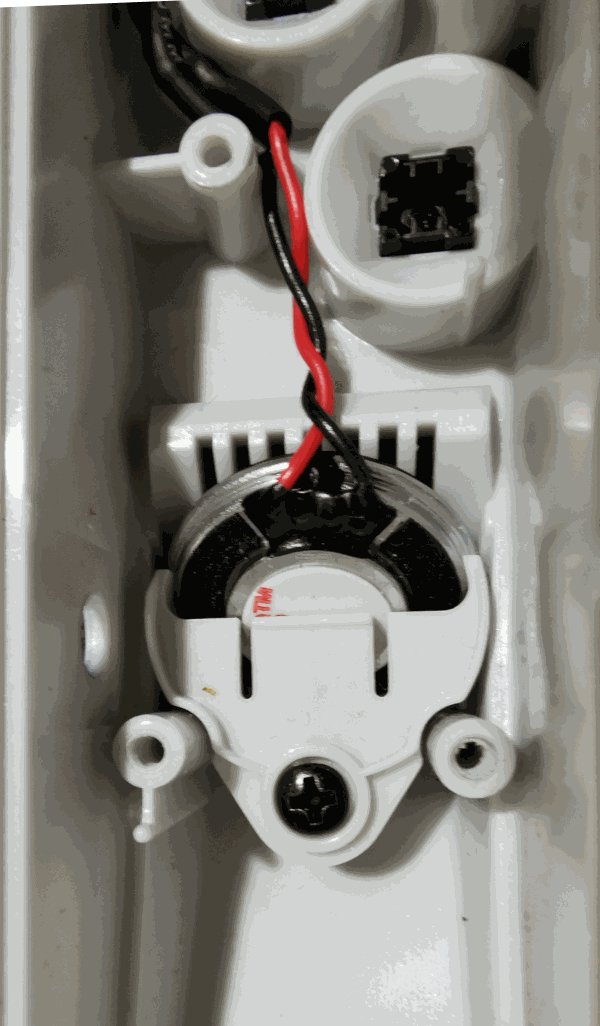

Roland Aerophone Mini AE-01 - Internals - Speaker

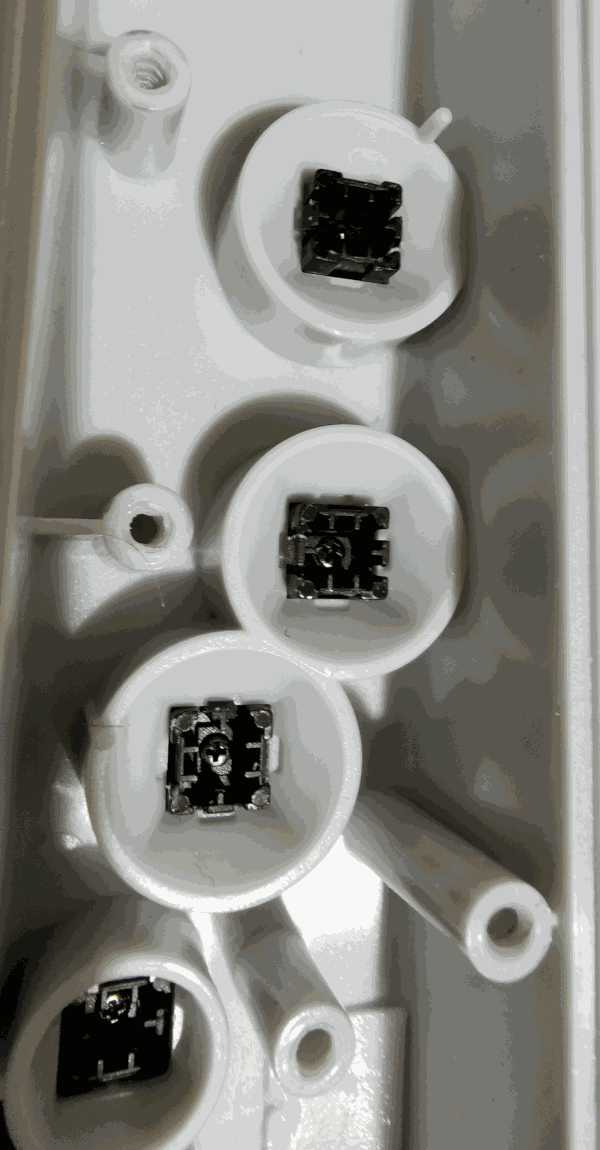

Roland Aerophone Mini AE-01 - Internals - Keys - Internal view

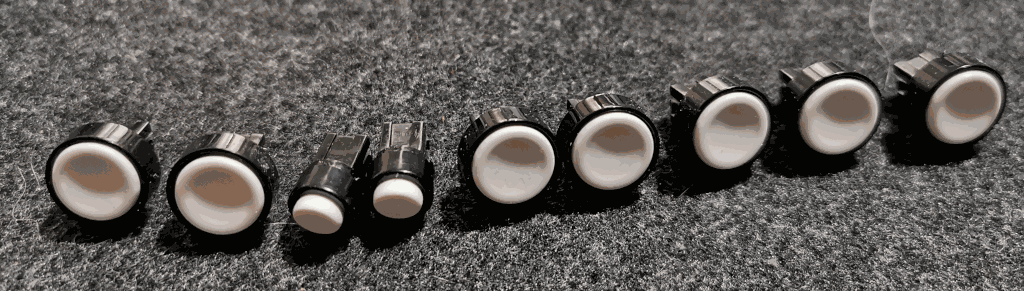

Roland Aerophone Mini AE-01 - Internals - Keys
